RQBK90

Beschreibung

RQBK90

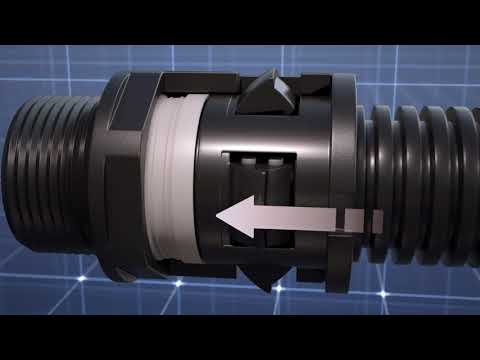

Kunststoff-Schnellverschraubung, Bogen 90°
Messingaußengewinde, integrierte Rasthülse
mit Dichtung, hochdichtend

Material

PA6

Zulassungen



  RQBK90-M | metrisches Gewinde
Temperatur: -40°C … +120°C
Schutzart [nach EN 60529]: IP68 | IP69K
FLEXA No. Farbe AD
[mm]
Gewinde Ø I
[mm]
Ø B
[mm]
C
[mm]
E
[mm]
F
[mm]
SW
[mm]
Gewicht
[kg/100]
VPE
[m]
5105.010.212 schwarz 10,0 M12x1,5 6,5 17,0 10,0 57,0 39,0 18 1,480 50
5105.013.216 schwarz 13,0 M16x1,5 8,5 20,0 12,0 59,0 40,5 21 1,400 50
5105.015.220 schwarz 15,8 M20x1,5 10,0 23,0 12,0 62,0 45,0 24 2,400 50
5105.021.220 schwarz 21,2 M20x1,5 13,0 29,5 12,0 73,0 48,0 26 2,400 50
5105.021.225 schwarz 21,2 M25x1,5 14,5 29,5 13,0 73,0 48,0 26 3,500 50
5105.028.225 schwarz 28,5 M25x1,5 17,0 37,0 13,0 90,0 64,0 32 4,840 25
5105.028.232 schwarz 28,5 M32x1,5 20,0 37,0 14,0 85,0 64,0 36 6,040 25
5105.034.232 schwarz 34,5 M32x1,5 23,0 44,0 14,0 100,5 74,0 39 8,000 10
5105.034.240 schwarz 34,5 M40x1,5 29,0 44,0 14,0 100,5 74,0 45 8,000 10
5105.042.240 schwarz 42,5 M40x1,5 31,5 52,0 17,0 111,0 82,5 48 16,500 10
5105.042.250 schwarz 42,5 M50x1,5 36,0 52,0 17,0 111,0 82,5 59 16,500 10
5105.054.250 schwarz 54,5 M50x1,5 35,5 64,0 17,0 124,5 98,0 60 19,000 5
5105.054.263 schwarz 54,5 M63x1,5 45,5 64,0 17,0 124,5 98,0 60 22,500 5




  RQBK90-P | PG – Gewinde

Temperatur: -40°C … +120°C

Schutzart [nach EN 60529]: IP68 | IP69K

FLEXA No. Farbe AD
[mm]
Gewinde Ø I
[mm]
Ø B
[mm]
C
[mm]
E
[mm]
F
[mm]
SW
[mm]
Gewicht
[kg/100]
VPE
[m]
5020.088.207 schwarz 10,0 PG7 6,5 17,0 10,0 57,0 39,0 18 1,340 50
5020.088.209 schwarz 13,0 PG9 8,5 20,0 12,0 59,0 40,5 21 1,920 50
5020.088.211 schwarz 15,8 PG11 10,0 23,0 12,0 62,0 45,0 24 2,640 50
5020.088.213 schwarz 18,5 PG13,5 12,5 25,0 12,0 65,0 47,0 27 2,860 50
5020.088.216 schwarz 21,2 PG16 14,5 29,5 13,0 73,0 48,0 26 3,080 50
5020.088.221 schwarz 28,5 PG21 20,0 37,0 14,0 85,0 64,0 36 5,760 25
5020.088.229 schwarz 34,5 PG29 29,0 44,0 14,0 100,5 74,0 46 8,800 10
5020.088.236 schwarz 42,5 PG36 36,0 52,0 17,0 111,0 82,5 58 14,800 10
5020.088.248 schwarz 54,5 PG48 45,5 64,0 17,0 124,5 97,0 70 21,800 5




  RQBK90-N | NPT – Gewinde

Temperatur: -40°C … +120°C

Schutzart [nach EN 60529]: IP68 | IP69K

FLEXA No. Farbe AD
[mm]
Gewindemaß NPT Ø I
[mm]
Ø B
[mm]
C
[mm]
E
[mm]
F
[mm]
SW
[mm]
Gewicht
[kg/100]
VPE
[m]
5020.022.205 schwarz 15,8 1/2 Zoll 10,0 23,0 12,0 62,0 45,0 24 3,000 50
5020.022.206 schwarz 21,2 1/2 Zoll 13,0 29,5 12,0 73,0 48,0 26 3,000 50
5020.022.214 schwarz 28,5 3/4 Zoll 17,0 37,0 14,0 85,0 64,0 22 5,100 25
5020.022.216 schwarz 34,5 1 Zoll 24,5 44,0 14,0 100,5 74,0 31 8,000 10
5020.022.217 schwarz 42,5 1 1/4 Zoll 31,5 52,0 17,0 111,0 82,5 36 12,000 10
5020.022.209 schwarz 54,5 1 1/2 Zoll 37,5 64,0 17,0 124,5 97,0 60 18,000 5
5020.022.210 schwarz 54,5 2 Zoll 45,5 64,0 17,0 124,5 97,0 70 18,300 5
